CONCAVE TIRE ROLLER SPECIFICATIONS:

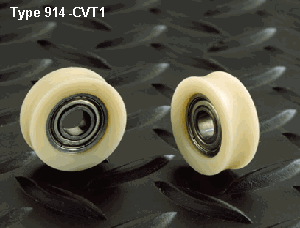

Type 914-CVT1 cvt1
Concave plastic tire.

Concave roller, used in applications where rails are constructed of tubes. Examples range from amusement parks to bioscience laboratories.

The concave shape increases the contact area with the tubular rail. The concave profile should be kept shallow for rail design with curves.



vt1V-Shaped Tire Roller Specifications:

Type 914-VT1
V-shaped plastic tire for linear slides with light side load.

V-type non-lubricated roller, used in applications where light side load is applied. Runs on special v-shaped rail.

Typical application: Cleanroom
