High Torque Spur Gear Specifications

a spurOD 20", 1.5" face / OD 6.5", 1.5" face - spur

Problem:
Corrosion, high torque, large OD

Solution:
Metal core
Individual 2.5" OD Inconell fastening ports cast into B.C.
Bolt circle 20"
For extremely corrosive environment (metal plating)
Face width calculated to carry load

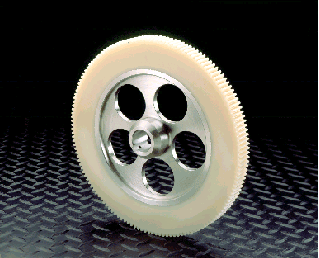

b spur



OD 7", 1/2" face, spur, SS core

Problem:
High torque, rapid start-stop, cleanroom

Solution:
Stainless steel core
Lightening holes
Eliminated lubrication
Calculated tooth width
