Plastic Roller Assembly Selection
Intech Power-Core
TM

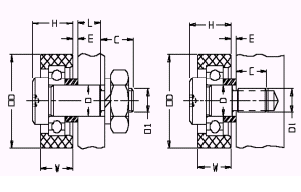

Roller Assemblies are constructed with standard rollers, shoulder bolts and spacers.
Stainless steel bearing shoulder bolt and spacer are available upon request.
Call 201-767-8066 to order.

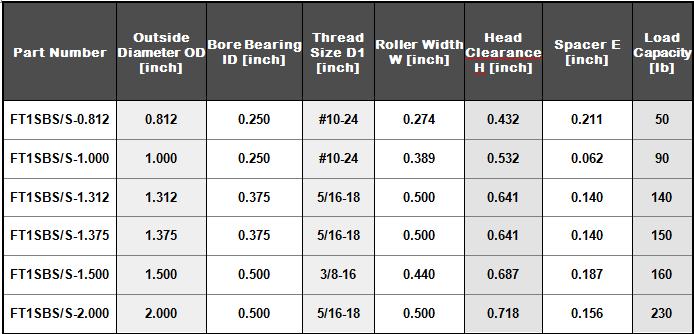

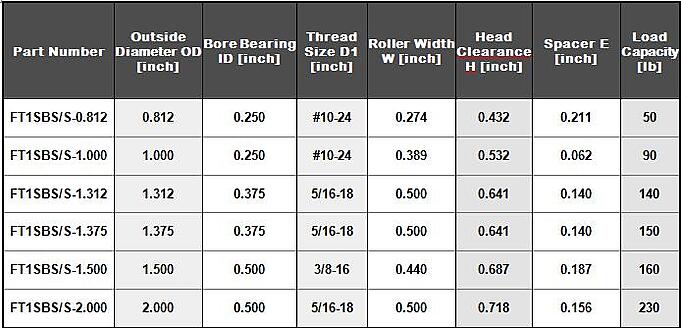

Standard Sizes:
