Intech Index Table

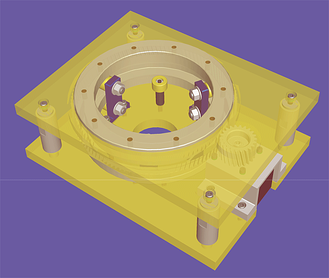

Light weight mechanical rotary index table with low profile and a compact design, using Intech Power-Core™ material for high stability and precision indexing



Rotary Index Table

Index Table Benefits

  • Reduces rotary friction load allowing significant increases in index table capacity
  • Disc rotates freely with a smooth motion
  • High stability
  • Switch from clockwise to anticlockwise rotation or reciprocating motion
  • Zero-backlash
  • High level of repetitive indexing accuracy
  • Speeds as high as x60 indexes per minute with 2 stops per revolution
  • Simple integration and control
  • Operational safety
  • Maintenance free, our index tables are designed for extended life



Rotary Index Table Configuration

  • Dial ring inside diameter:              max. 7”
  • Dial ring outside diameter:           min. 14” x 11”
  • Indexing precision:                       less than 5 arc min.
  • Indexing precision in radian measurement: (at ø 1100 mm)  ± 0,5 mm



Features

  • Large center hole
  • Can be mounted vertically or horizontally
  • Drive  24v DC
  • High precision Intech Power-Core™ rollers guide the table
  • The Intech Power-Core™ rollers use stainless steel ball bearings with less rolling resistance
  • Lubrication free rollers eliminate the possibility of contamination



Applications

  • Automatic assembly machine
  • Bottling machine
  • Clean room applications
  • Medical equipment manufacturing
  • Packaging machine
  • Lubrication free rollers eliminate the possibility of contamination
  • Pharmaceutical index dial tables
  • Presses
  • Processing machine for light metal-cutting
  • Screen and Pad Printers
  • Trimming machine
  • Welding machine
